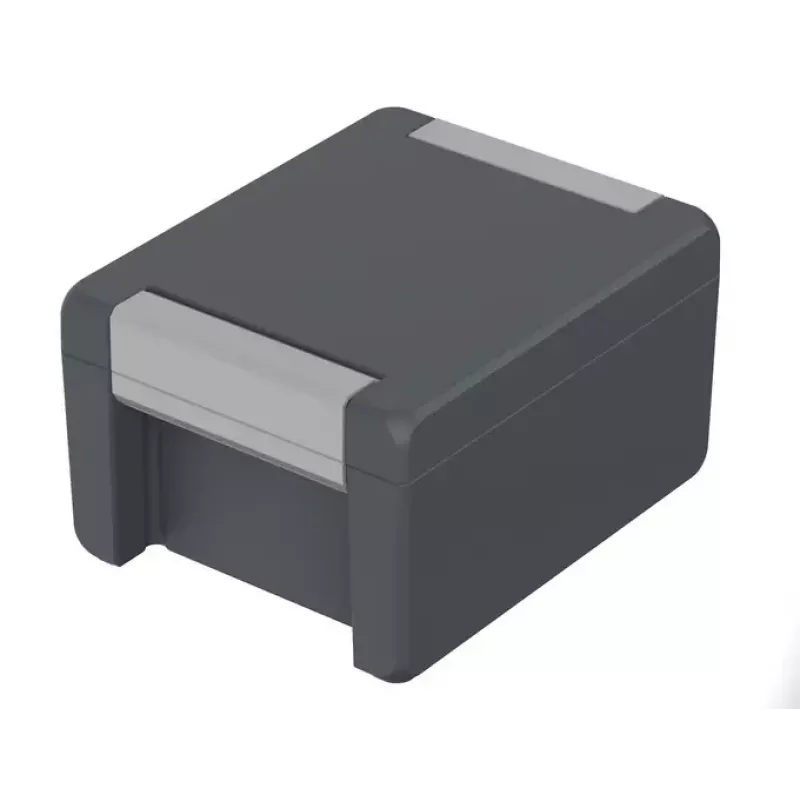

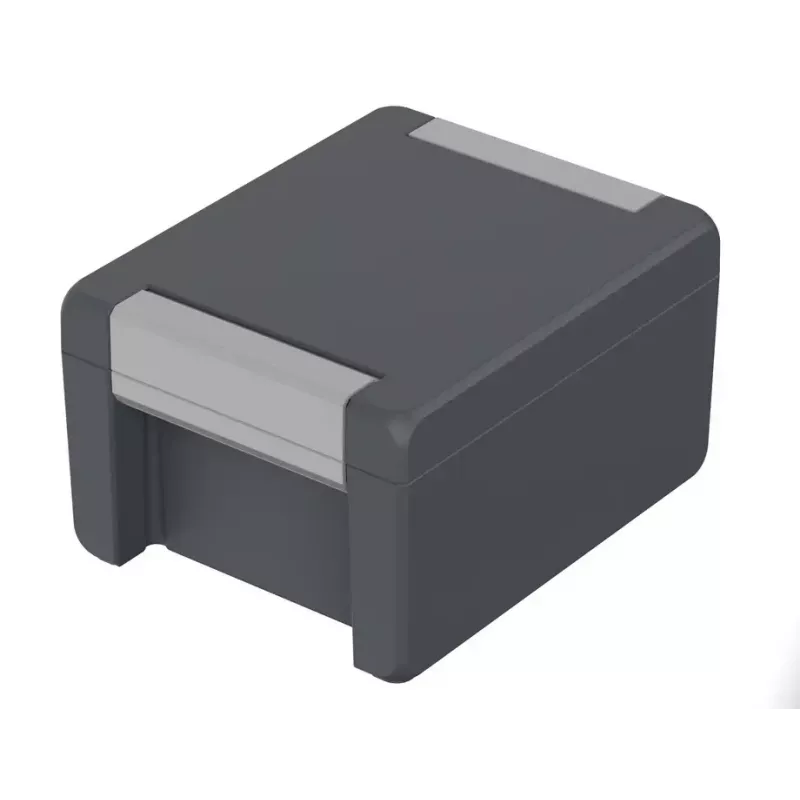

Caixa universal Bopla BA 141309-7024 159 x 128 x 90 mm alumínio cinzento grafite RAL 7024 00113234

This Bopla BA series enclosure stands out with its rugged die-cast aluminium construction and a graphite grey powder-coated finish, offering a dependable housing for industrial electronics where durability and a professional appearance are required.

Highlights

• External dimensions: 159 mm (L) x 128 mm (W) x 90 mm (H)
• Material: Aluminium
• Colour: Graphite grey (RAL 7024)
• Protection class: IP66
• Impact resistance: IK08
• Screw-on lid with stainless steel screws
• Neoprene gasket for reliable sealing
• Internal mounting bosses for PCBs and components
• Operating temperature range: -40 °C to +100 °C
• Wall thickness: 2.5 mm

In daily use

The enclosure provides a robust, sealed environment for sensitive electronics in demanding industrial settings. The powder-coated aluminium body withstands mechanical stress, while the neoprene gasket and stainless steel lid screws maintain integrity against dust and water ingress. Internal mounting bosses simplify assembly, allowing secure fastening of PCBs and components without additional brackets.

Full specifications

• Product type: Universal enclosure
• Series: Bopla BA
• Material: Aluminium
• Finish: Powder coated
• External length: 159 mm
• External width: 128 mm
• External height: 90 mm
• Wall thickness: 2.5 mm
• Colour: Graphite grey
• RAL colour code: RAL 7024
• Protection class: IP66
• Impact resistance: IK08
• Lid fastening: Screw-on lid
• Lid screw material: Stainless steel
• Gasket material: Neoprene
• Operating temperature range: -40 °C to +100 °C
• Internal mounting: Mounting bosses for PCBs/components
• RoHS compliant: Yes
• Application: Industrial, electronic, general purpose

Final note

Supplied as a single piece, this enclosure is ready for integration into your next project.
