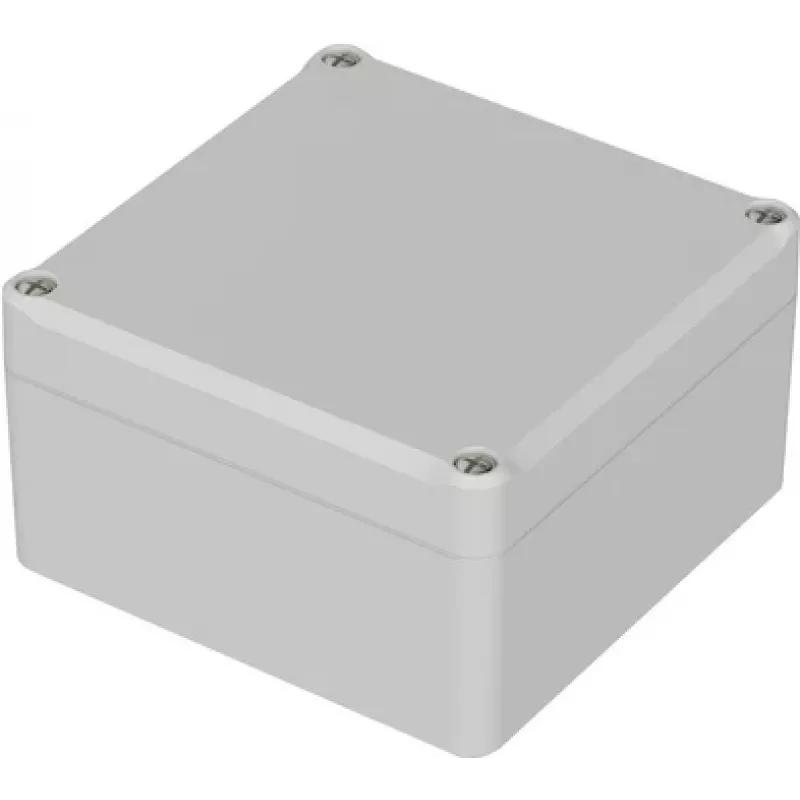

Caixa universal Bopla EM 212 100 x 100 x 57 mm policarbonato cinzento-claro RAL 7035 62212000

When electronics need protection from dust, water, and impact, a sturdy enclosure is essential. The Bopla EM 212 universal enclosure offers a reliable housing for your components, with external dimensions of 100 x 100 x 57 mm.

Who is it for

This enclosure suits engineers, technicians, and hobbyists who build or install electronic devices in industrial or outdoor environments. It is ideal for control units, sensors, or small automation systems that require a robust, light grey housing.

Main features

• Made from polycarbonate (PC), light grey, RAL 7035
• External size: 100 mm length, 100 mm width, 57 mm height
• Protection class IP65: dust-tight and protected against water jets
• Impact resistance IK08
• Flammability rating UL 94 V-0
• Operating temperature range: -40 °C to +80 °C
• Gasket material: polyurethane (PUR)
• Lid fastened with 4 stainless steel screws
• Internal mounting bosses for DIN rails or mounting plates
• Halogen-free and UV resistant

Specifications

• Brand: Bopla
• Model: EM 212
• MPN: 62212000
• EAN: 4049505025534
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 100 x 100 x 57 mm
• Protection class: IP65
• Impact resistance: IK08
• Flammability rating: UL 94 V-0
• Operating temperature: -40 °C to +80 °C
• Gasket material: Polyurethane (PUR)
• Lid screws: 4, stainless steel
• Mounting: Internal bosses for DIN rails/mounting plates
• Halogen-free: Yes
• UV resistance: Yes

Tips

Pair this enclosure with a compatible mounting plate or DIN rail for quick installation. The polycarbonate body withstands many acids, alkalis, and oils, making it suitable for challenging environments.
