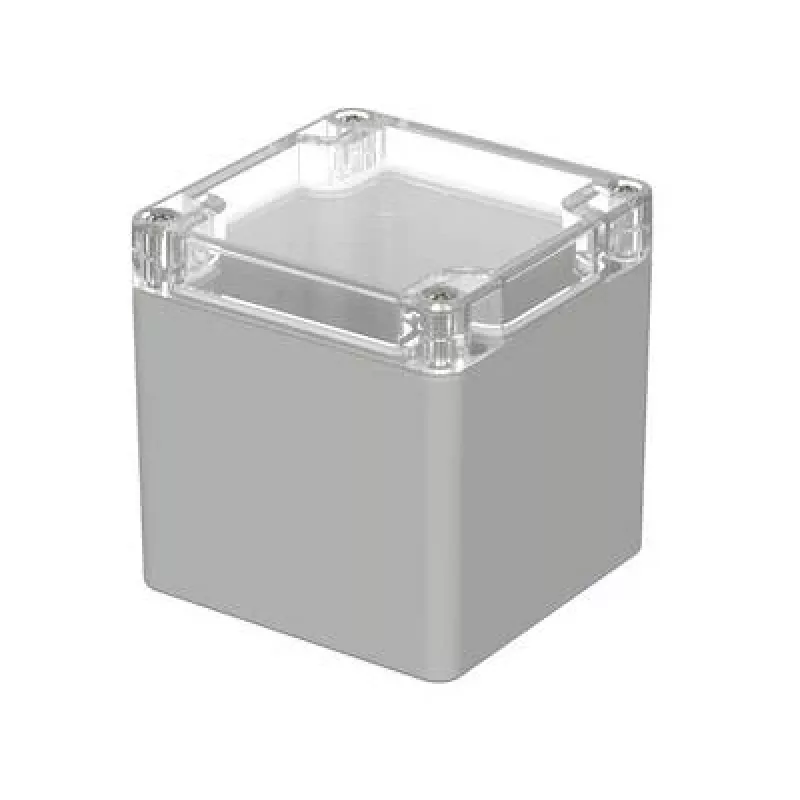

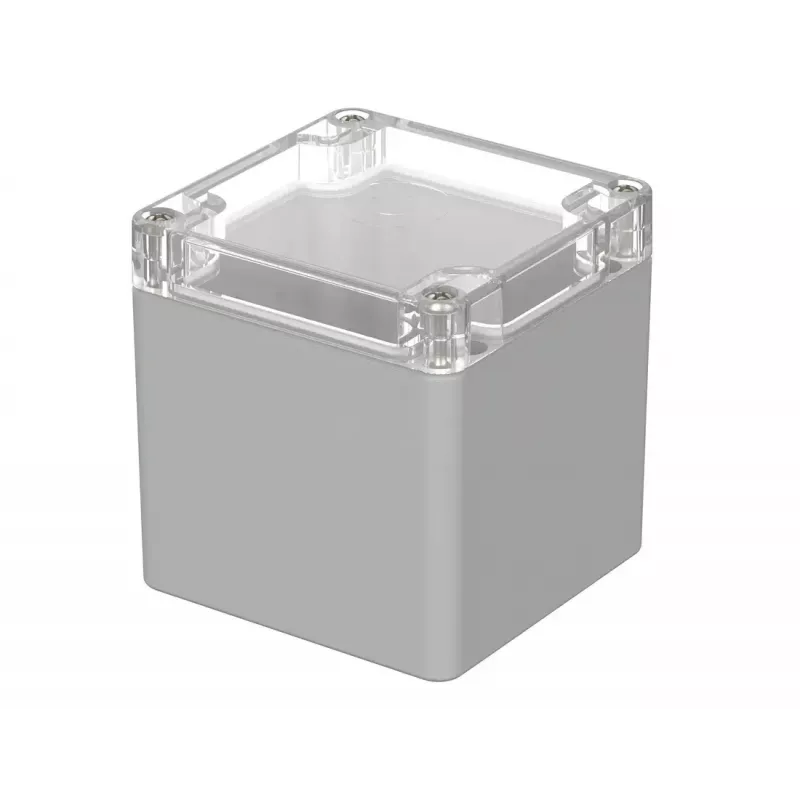

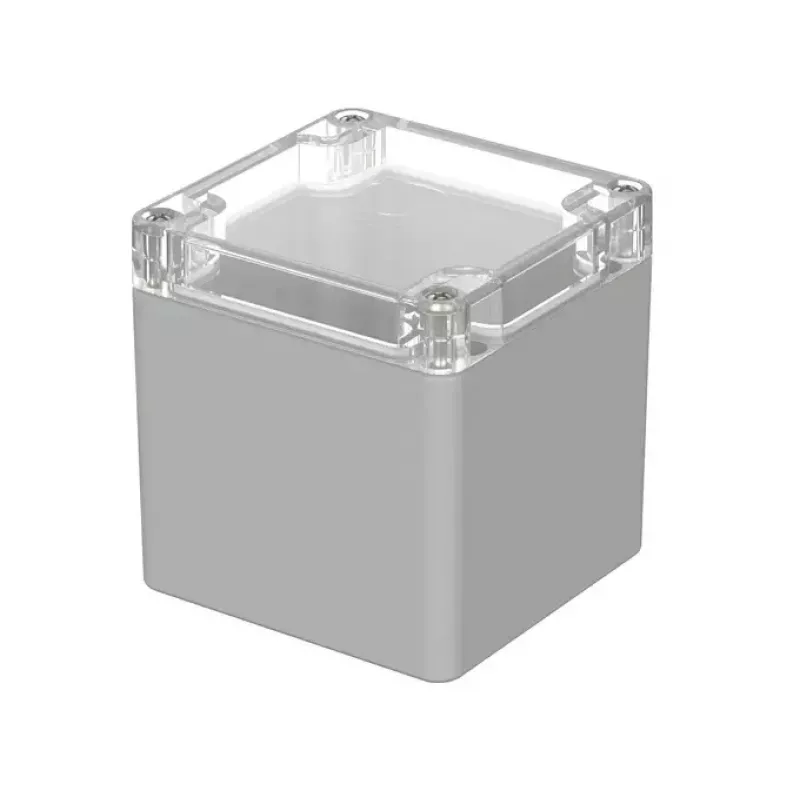

Caixa universal Bopla EUROMAS M 225 G, 82 x 80 x 85 mm, policarbonato, cinzento-claro 02225100

Protect sensitive electronics in demanding industrial and outdoor environments with the Bopla EUROMAS M 225 G universal enclosure. Its robust polycarbonate body and IP65-rated seal keep dust and water out, while the light grey finish suits a wide range of applications.

Who is it for

Engineers, system integrators, and technicians who need a reliable housing for control units, sensors, or communication devices in factories, outdoor installations, or washdown areas.

Main features

• Impact-resistant polycarbonate construction (IK08) for long-lasting protection.
• IP65 ingress protection against dust and water jets.
• Stainless steel lid screws for corrosion resistance and secure closure.
• Internal mounting bosses for easy installation of PCBs and components.
• Wide operating temperature range from -40°C to +80°C.

Specifications

• External dimensions: 82 mm width × 80 mm height × 85 mm depth
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Ingress protection: IP65
• Impact resistance: IK08
• Flammability rating: UL 94 V-2
• Lid fasteners: Stainless steel screws
• Gasket material: Polyurethane (PU) foam
• Mounting: Internal bosses
• Halogen-free: Yes
• RoHS compliant: Yes

Tips

Pair this enclosure with a compatible cable gland or pressure compensation element to maintain the IP65 rating in humid environments. For outdoor use, consider a UV-stabilised version if prolonged sun exposure is expected.
