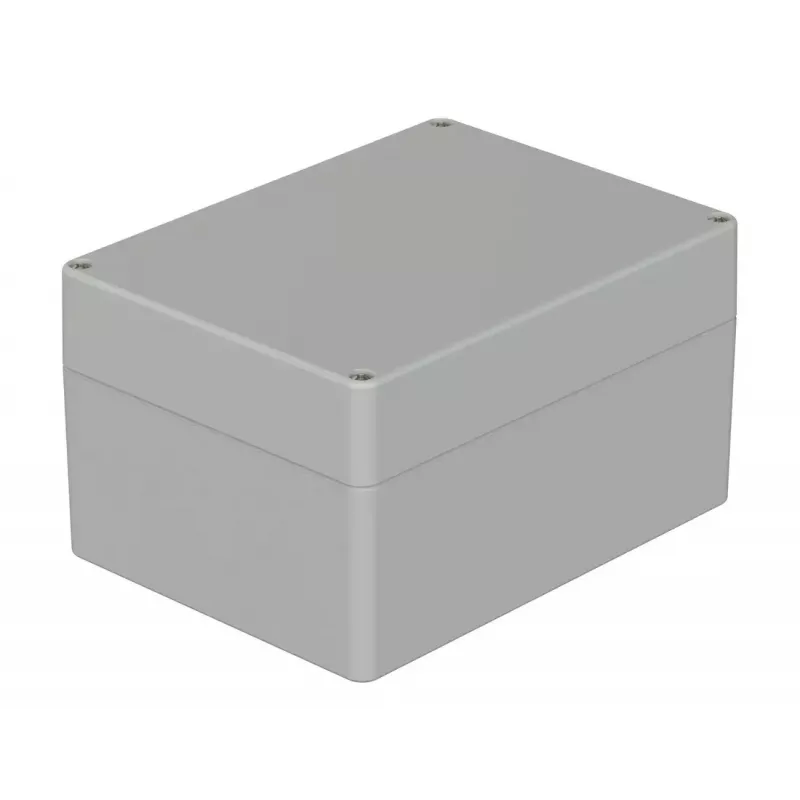

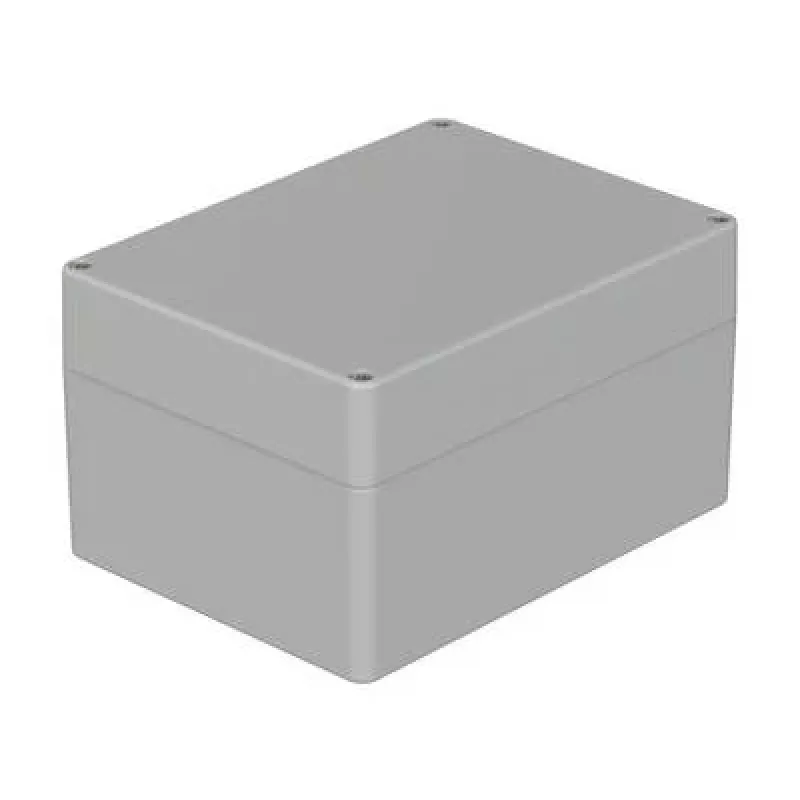

Caixa universal Bopla EUROMAS M 238 160 x 120 x 90 mm policarbonato cinzento-claro 02238000

When electronic components need protection from dust, moisture, and impact, this Bopla EUROMAS M enclosure provides a robust housing solution. Its polycarbonate construction and light grey finish make it suitable for a wide range of industrial and electrical applications.

Who is it for

Engineers, panel builders, and technicians who require a reliable enclosure for PCBs, terminals, or control equipment in demanding environments.

Main features

• Universal enclosure with external dimensions 160 x 120 x 90 mm
• Made from UV-stabilized polycarbonate (PC) in light grey (RAL 7035)
• IP65 protection against dust and water jets
• Impact resistance IK07
• Lid secured with 4 stainless steel screws
• Polyurethane foam gasket for reliable sealing
• Internal mounting bosses for PCBs or mounting plates
• Halogen-free and RoHS compliant
• Operating temperature range -40°C to +80°C

Specifications

• Series: EUROMAS M
• Enclosure type: Universal enclosure
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 160 x 120 x 90 mm
• Protection class: IP65
• Impact resistance: IK07
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PU) foam
• Flammability rating: UL 94 V-2
• Halogen-free: Yes
• RoHS compliant: Yes
• Mounting type: Wall mounting possible
• Internal mounting bosses: Yes
• Lid type: Opaque
• Operating temperature range: -40°C to +80°C

Tips

For wall mounting, use external brackets or internal holes as appropriate. Ensure the gasket is seated properly when closing the lid to maintain IP65 protection.
