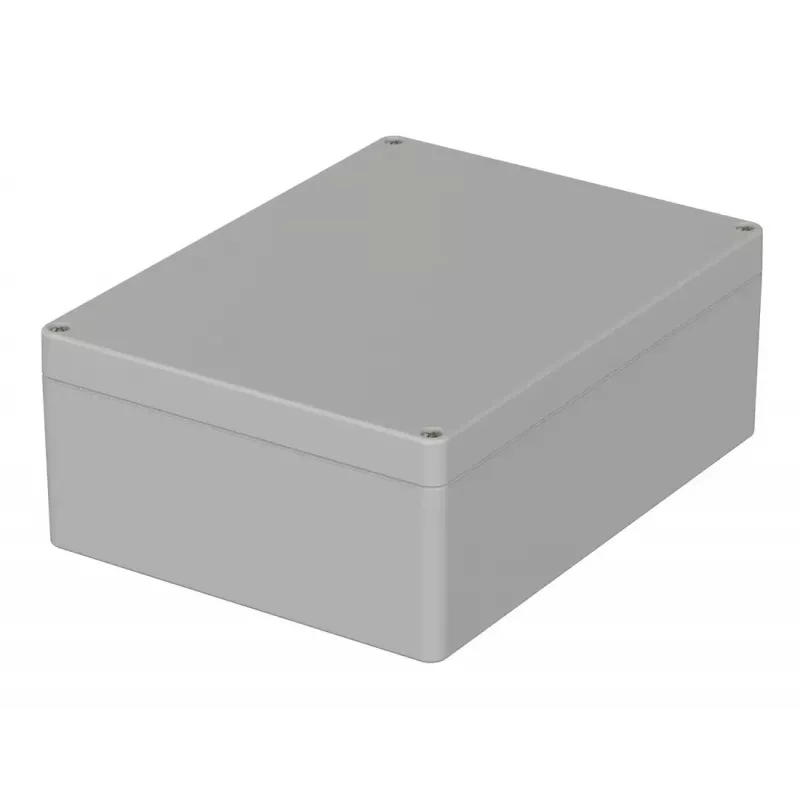

Caixa universal BOPLA policarbonato cinzento-claro 200 x 150 x 75 M 223 VO 02223094

Protecting sensitive electronics in demanding environments requires a robust housing that seals out dust and moisture while withstanding mechanical impact. The BOPLA Universal Enclosure 02223094 provides a light grey polycarbonate shell with an IP65 rating, ensuring reliable protection for control systems, measurement devices, and other electronic assemblies.

Who is it for

This enclosure is ideal for electrical engineers, panel builders, and system integrators who need a durable, flame-retardant housing for indoor or outdoor applications where dust and water jets are present.

Main features

• Polycarbonate construction with UL 94 V-0 flammability rating
• External dimensions: 200 x 150 x 75 mm
• IP65 protection against dust and water jets
• Impact resistance IK07
• Operating temperature range: -40 °C to +80 °C
• Polyurethane foam gasket for reliable sealing
• Lid secured with 4 stainless steel screws
• Internal mounting bosses for PCBs or mounting plates
• External wall mounting points

Specifications

• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 200 x 150 x 75 mm
• Internal dimensions (L x W x H): approx. 190 x 140 x 68 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Operating temperature range: -40 °C to +80 °C
• Gasket material: Polyurethane (PU) foam
• Lid fastening: 4x stainless steel screws
• Wall thickness: approx. 2.5 mm
• Halogen-free: Yes
• Cover type: Opaque

Tips

For optimal sealing, ensure the gasket is seated correctly and the lid screws are tightened evenly. The enclosure can be mounted on walls using the external mounting points, and internal bosses allow for secure PCB installation.
