ELEKTRA-PLUS R3 trinco elétrico esquerdo com bloqueio

The ELEKTRA-PLUS R3 Left Electric Strike with Blocking is a left-handed electric strike designed for door access control. It features an adjustable latch with a 3 mm adjustment range to compensate for door play.

Key features

• Left-handed version

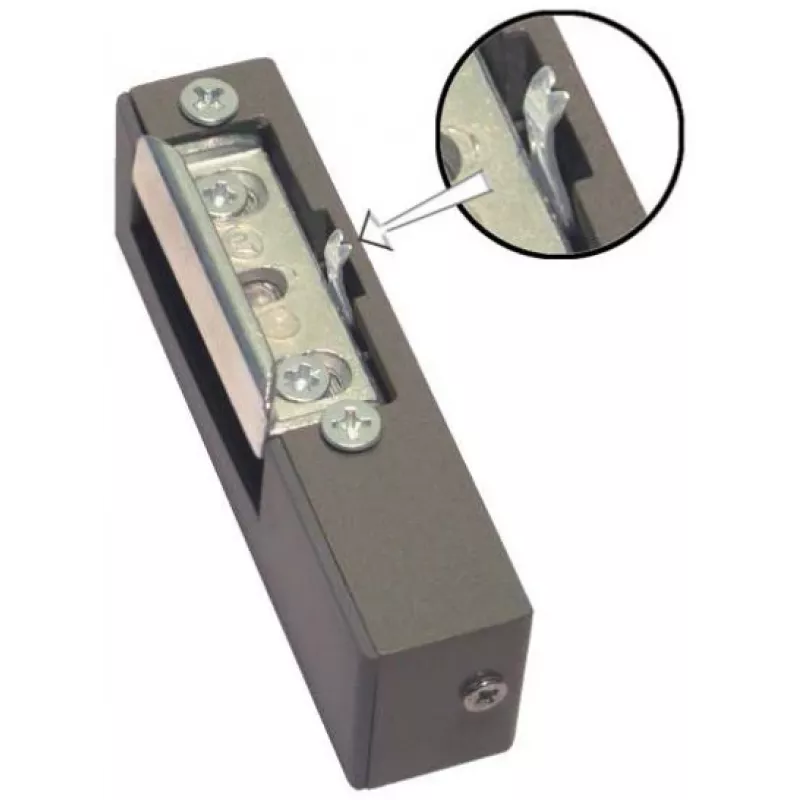

• Adjustable latch with 3 mm adjustment range
• Blocking function

Specifications

• Brand: Elektra-Plus
• MPN: R3-12.20L
• External housing dimensions: 22 x 28 x 90 mm
• Weight: 0.20 kg
• Maximum weight of strike with faceplate: 0.40 kg
• Permissible pressure on door during latch release: 30 N (3 kg)
• Permissible door load acting on strike: 3000 N (300 kg)
• Rated voltage U: 10 ± 2 V * 24 ± 2 V **
• Current I: AC 270-420 mA, DC 420-650 mA
• Permissible continuous operation time: 30 min
