ELEKTRA-PLUS R4 trinco elétrico com bloqueio simétrico

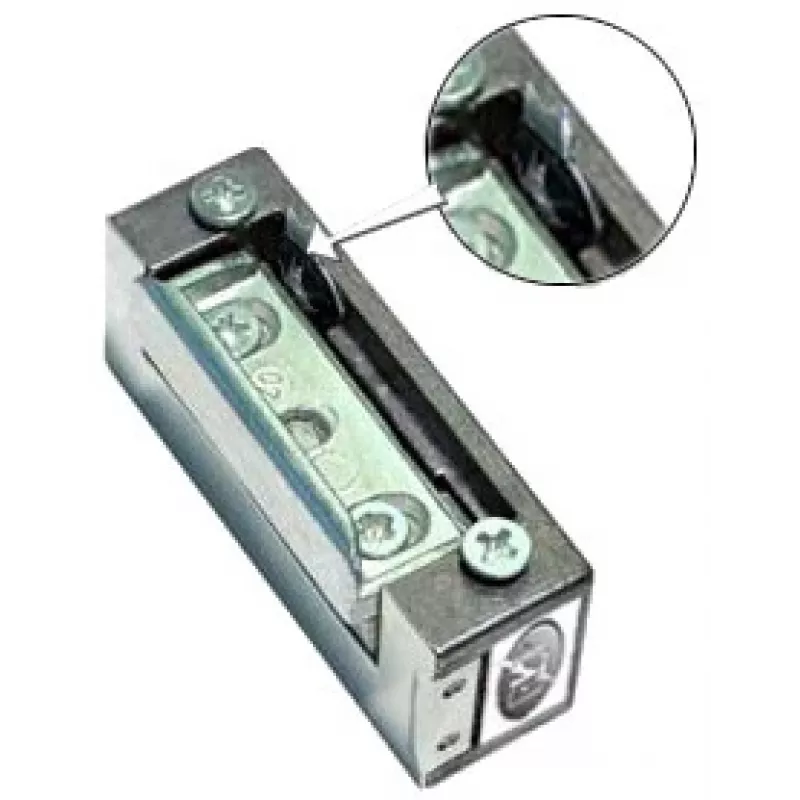

The ELEKTRA-PLUS R4 Electric Strike with Symmetrical Blocking is designed for secure door locking. It features a symmetrical blocking mechanism and an adjustable latch for precise alignment.

Key features

• Symmetrical blocking
• Adjustable latch with 3 mm adjustment range
• Allows adjustment of clearance

Specifications

• Brand: Elektra-Plus
• MPN: R4-12.20
• External housing dimensions: 21 x 29 x 67 mm
• Weight: 0.16 kg
• Permissible pressure on door during latch release: 30 N (3 kG)
• Permissible load on door acting on strike: 3000 N (300 kG)
• Rated voltage U: 10 ± 2 V * 24 ± 2 V **
• Current: I AC 280-530 mA, DC 440-660 mA
• Permissible continuous operation time: 30 min
• * Allows use of a bell transformer
• ** In special version
