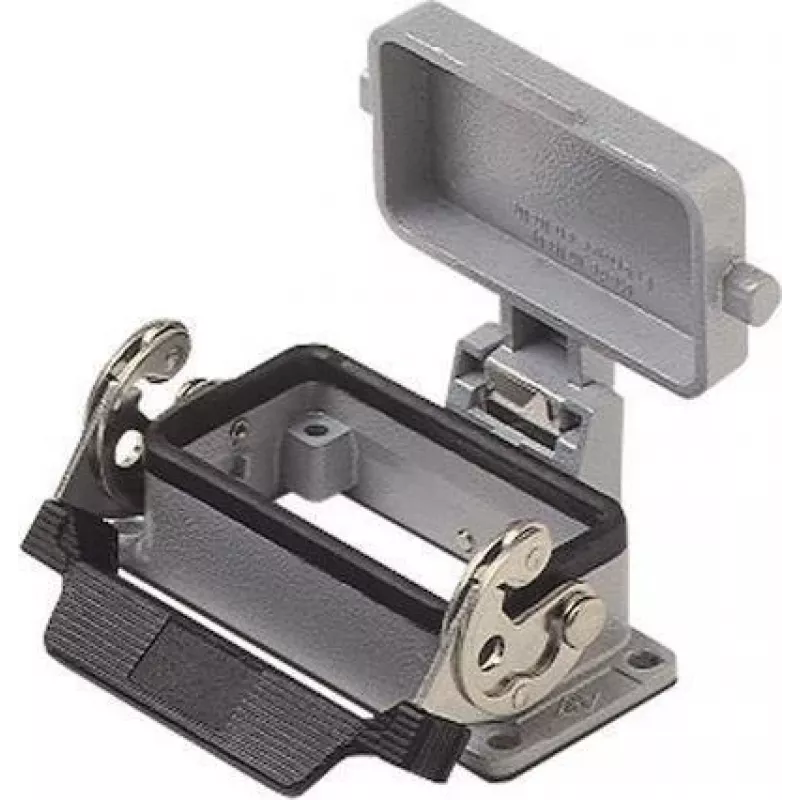

Caixa de montagem em superfície ILME CHI16LS, tamanho 77.27, alumínio fundido, cinzento, alavanca única, IP65, M25

Surface mounting housing from the ILME CHI series, size 77.27 for 16A inserts. The housing body is made of aluminium die-cast with a powder-coated grey finish (RAL 7040) and a galvanized steel single lever locking system. It provides IP65 protection and one M25 cable entry on the side.

Advantages

Robust aluminium die-cast construction ensures durability in industrial environments. The single lever locking system allows quick and secure closure. IP65 rating protects against dust and water jets. Wide operating temperature range from -40°C to +125°C. NBR gasket provides reliable sealing.

Suitable for

• Industrial connector applications
• Panel or surface mounting
• ILME 16A inserts

Key specifications

• Series: CHI
• Size: 77.27 (16A)
• Material: Aluminium die-cast
• Colour: Grey (RAL 7040)
• Locking system: Single lever
• Lever material: Galvanized steel
• Protection rating: IP65
• Temperature range: -40°C to +125°C
• Cable entry thread: M25
• Number of cable entries: 1
• Gasket material: NBR
• Surface treatment: Powder coated
• Compatibility: ILME 16A inserts
• Mounting type: Panel / surface mount
• Orientation: Side entry

Recommendations

Pair with ILME 16A inserts and appropriate M25 cable glands for a complete industrial connection solution.
