WAGO 2002-1304 bloco de terminais Push-in de 3 condutores, 2,5 mm², 800 V, cinzento

The WAGO 2002-1304 is a compact 3-conductor terminal block from the 2002 Series, featuring the innovative Push-in CAGE CLAMP® connection technology for fast and reliable wiring. Designed for DIN-rail mounting, this terminal block is ideal for industrial control cabinets and building installations where space is at a premium.

Advantages

Push-in CAGE CLAMP® technology allows for tool-free connection of solid conductors, significantly reducing installation time. The compact design saves space on the DIN rail, while the gray polyamide housing provides excellent insulation and durability. Rated for 800 V and 24 A, it meets the demands of high-voltage applications.

Suitable for

• Industrial automation and control systems
• Building electrical installations
• Distribution boards and junction boxes
• Lighting and power distribution

Key specifications

• Connection Technology: Push-in CAGE CLAMP®
• Number of Conductors: 3
• Nominal Cross Section: 2.5 mm²
• Solid Conductor Size: 0.25 - 4 mm² (22 - 12 AWG)
• Fine-Stranded Conductor Size: 0.25 - 4 mm² (22 - 12 AWG)
• Rated Voltage (EN 60947-7-1): 800 V
• Rated Impulse Voltage: 8 kV
• Rated Current (EN 60947-7-1): 24 A
• Pollution Degree: 3
• Overvoltage Category: III
• Insulating Material: Polyamide (PA 66)
• Color: Gray
• Mounting Type: DIN-rail 35 x 15 / 35 x 7.5
• Stripping Length: 9 - 11 mm (0.35 - 0.43 inch)
• Flammability Class (UL94): V0
• Operating Temperature: -35 to +85 °C
• Approvals: UL, CSA, VDE, GL, LR, BV, RINA, DNV
• Type of Wiring: Front-entry wiring

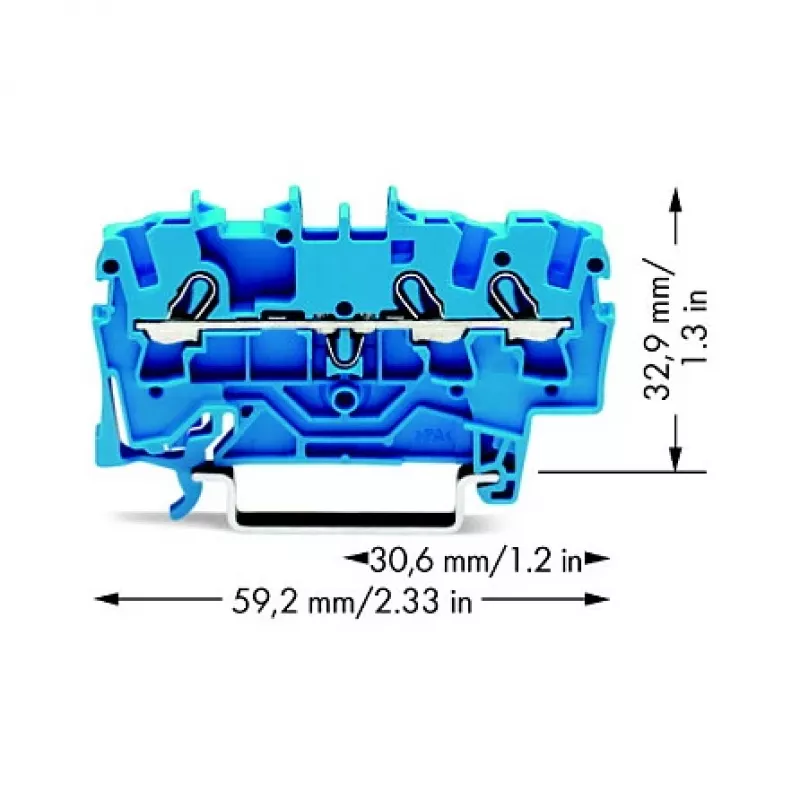

• Dimensions (W x H x D): 5.2 mm x 59.2 mm x 32.9 mm

Recommendations

For optimal performance, use with WAGO operating tools and ensure proper stripping length. Suitable for use in harsh environments with high vibration and temperature fluctuations.
