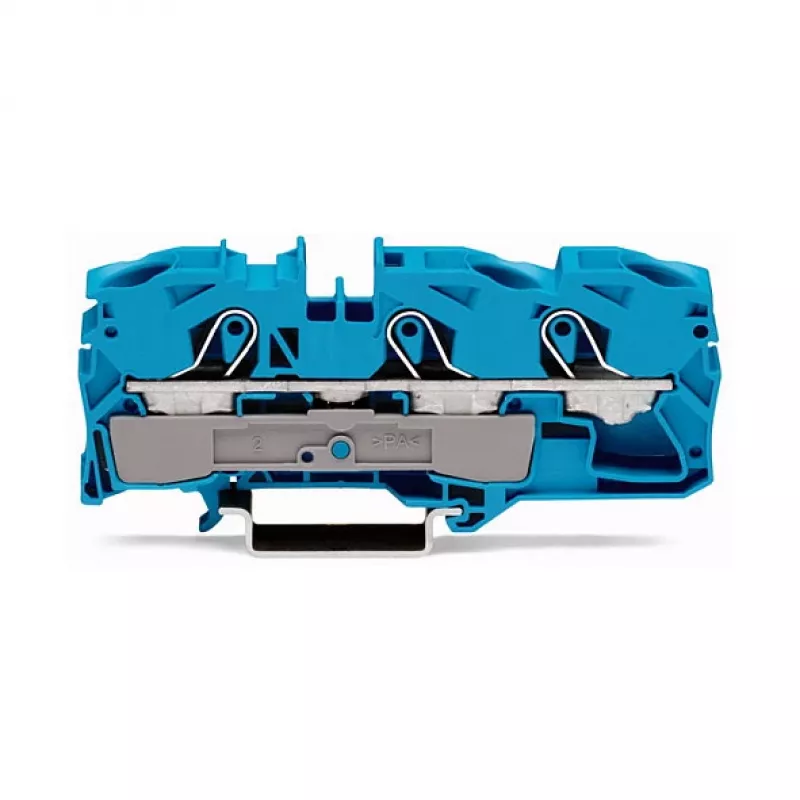

WAGO 2016-1304 Terminal de passagem de 3 condutores, 16 mm², 800 V

The WAGO 2016-1304 is a 3-conductor through terminal block suitable for Ex e II and Ex i applications. It has a nominal voltage of 800 V and a current rating of 90 A.

Key features

• 3-conductor through terminal block
• Suitable for Ex e II applications
• Suitable for Ex i applications
• Product colour: Blue

Specifications

• Brand: WAGO
• MPN: 2016-1304
• Nominal voltage: 800 V
• Current: 90 A
• Wire size (AWG): 20 - 4
• Minimum wire cross-section: 0.5 mm²
• Maximum wire cross-section: 25 mm²

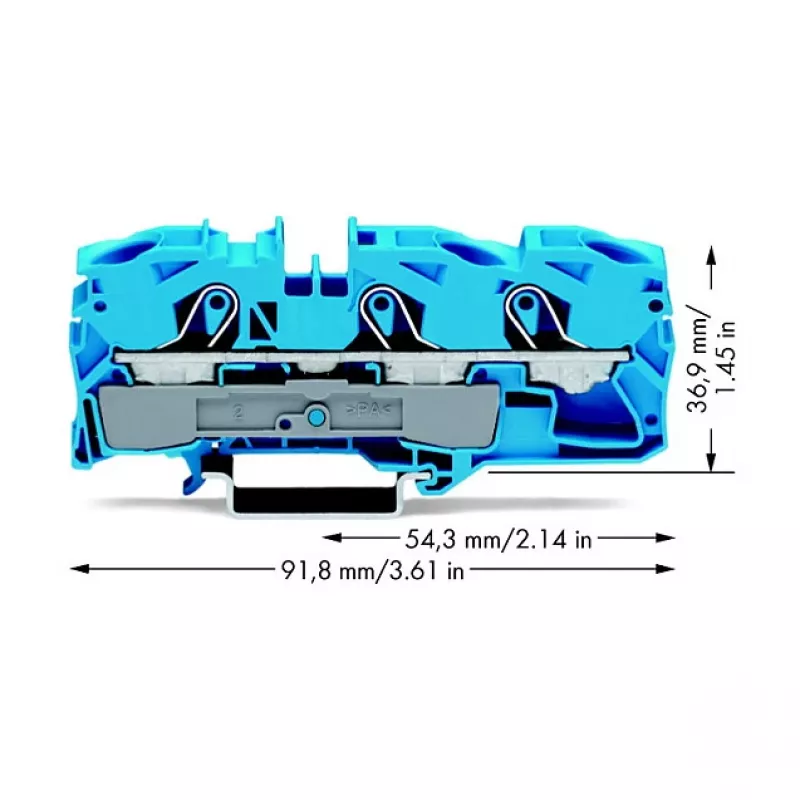

• Width: 12 mm
• Depth: 91.8 mm
• Height: 36.9 mm
