Weidmüller WQV 16N/2 conector transversal, 2 polos, 16 mm², amarelo, poliamida, 50 unid.

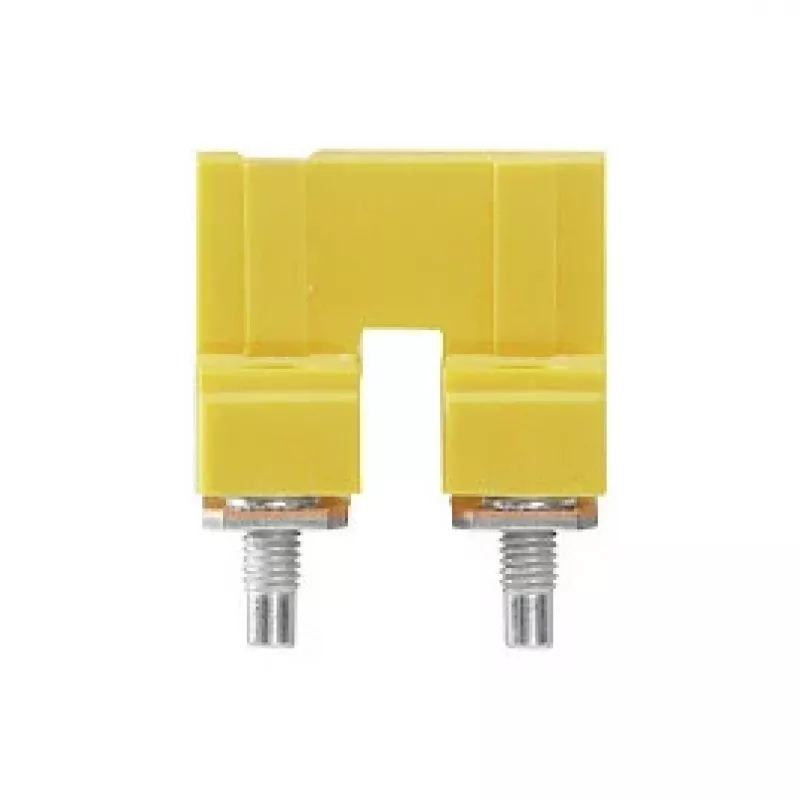

The Weidmüller WQV 16N/2 is a high-quality cross-connector jumper designed for use with Weidmüller W-Series terminal blocks. This 2-pole jumper enables efficient internal cross-connection, simplifying wiring and saving space in control cabinets and junction boxes. Made from durable polyamide (PA) with a yellow color, it offers excellent insulation and a wide operating temperature range from -50 to 100 °C. The jumper is rated for 1000 V and 76 A, making it suitable for demanding industrial applications. Supplied in a pack of 50 pieces, it ensures reliable and consistent performance.

Advantages

• Simplifies wiring by creating internal cross-connections between adjacent terminals
• Saves space and reduces installation time compared to external wiring
• High-quality polyamide material ensures long-lasting insulation and mechanical strength
• Wide temperature range (-50 to 100 °C) suitable for harsh environments
• UL 94 V-2 flammability rating for enhanced safety

Suitable for

• Industrial control panels and switchgear
• Building automation systems
• Power distribution and signal wiring
• Applications requiring reliable cross-connection in terminal blocks

Key specifications

• Product Type: Cross-connector / Jumper
• Number of Poles: 2
• Nominal Cross-Section: 16 mm²
• Compatible Terminal Series: Weidmüller W-Series (WDU 16, WDK 16, WPE 16)
• Insulation Material: Polyamide (PA)
• Color: Yellow
• Operating Temperature Range: -50 to 100 °C
• Flammability Rating: UL 94 V-2
• Rated Voltage (IEC): 1000 V
• Rated Current (IEC): 76 A
• Mounting Type: Plug-in
• Connection Type: Internal cross-connection
• Packaging Quantity: 50 pieces
• Weight per Piece: 0.003 kg
• Environmental Compliance: RoHS, REACH

Recommendations

For optimal performance, use the WQV 16N/2 with Weidmüller W-Series terminal blocks such as WDU 16, WDK 16, or WPE 16. Ensure proper installation by plugging the jumper securely into the designated slots. Always follow local electrical codes and regulations.
