Acessório de iluminação MEAN WELL LPV-35-24 branco 90-264V AC

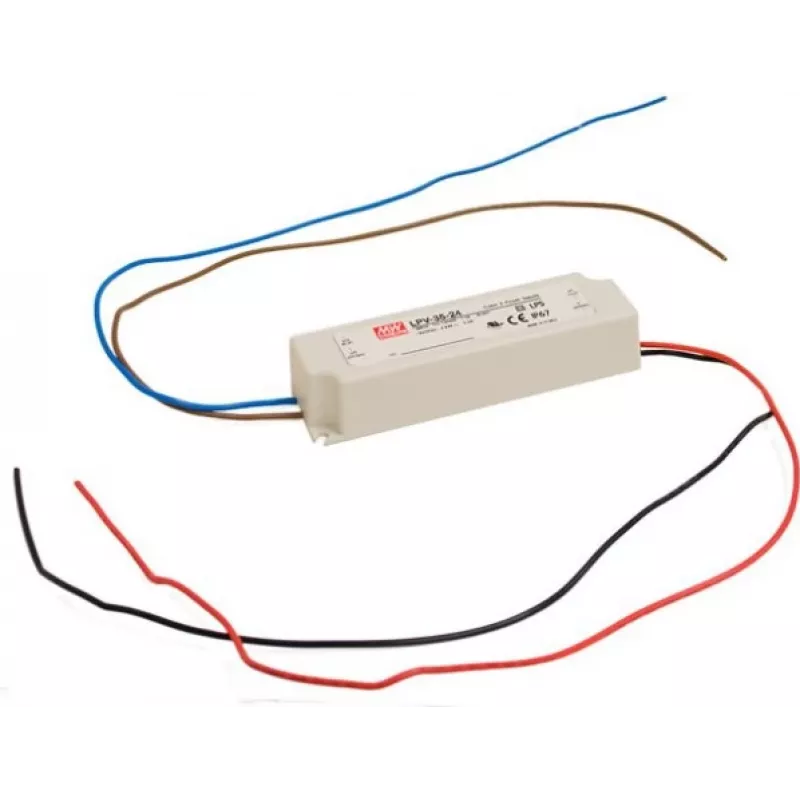

The MEAN WELL LPV-35-24 is a compact constant-voltage power supply for lighting applications. Finished in white, it accepts a universal AC input of 90–264V AC, delivers stable 24V output and is suited for LED lighting and moving sign systems. The unit measures 148 mm × 30 mm × 40 mm and is built with a fully isolated plastic case and convection cooling for reliable continuous operation.

Advantages

The power supply offers wide-range AC input compatibility and can withstand a 300VAC surge for 5 seconds. It includes built-in protections against short circuit, over current and over voltage. The device undergoes a 100% full-load burn-in test for quality assurance and combines low cost with high reliability.

Suitable for

• LED strip and luminaires
• Moving signs and illuminated displays
• Small lighting installations requiring 24V constant voltage

Key specifications

• Model: MEAN WELL LPV-35-24 (MPN: LPV-35-24)
• Input voltage: 90–264V AC (universal)
• Surge tolerance: withstands 300VAC for 5 seconds
• Output: 24V constant voltage
• Protections: short circuit, over current, over voltage
• Enclosure: fully isolated plastic case
• Cooling: convection (free air)
• Dimensions: 148 × 30 × 40 mm
• Warranty: 2 years

How to use

Install the LPV-35-24 in a dry, ventilated location with adequate space for convection cooling. Connect the AC input (90–264V) to the live, neutral and earth terminals according to local electrical codes. Connect the 24V DC output to the LED load, observing correct polarity. Do not exceed the rated output current or load. Verify connections and perform initial testing before full operation.

Recommendations

Use the supply with loads matched to its 24V constant-voltage output and ensure proper ventilation; avoid placing the unit near heat sources or in sealed enclosures to maintain long-term reliability.
