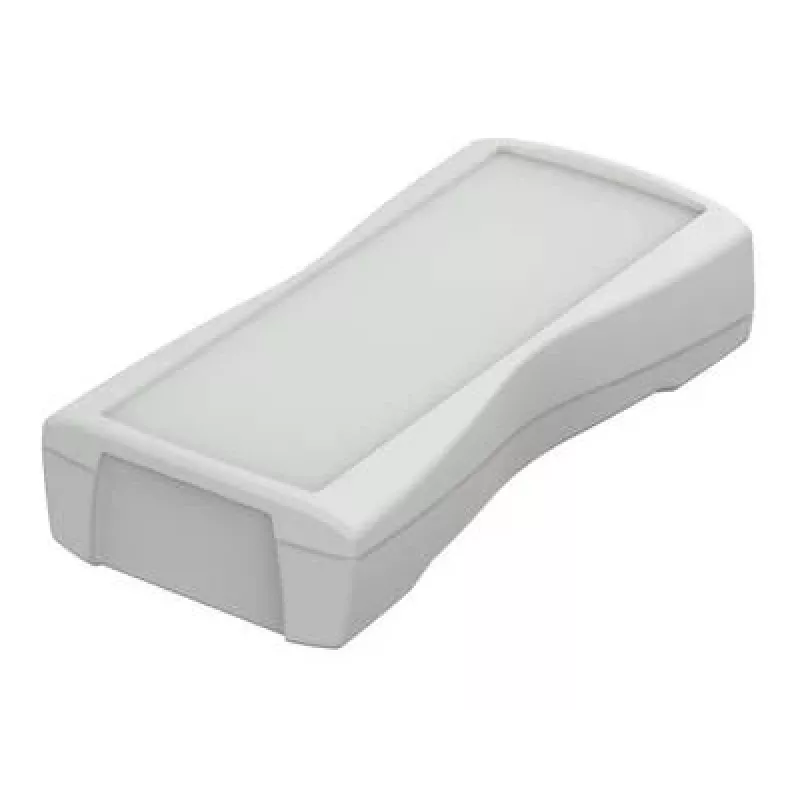

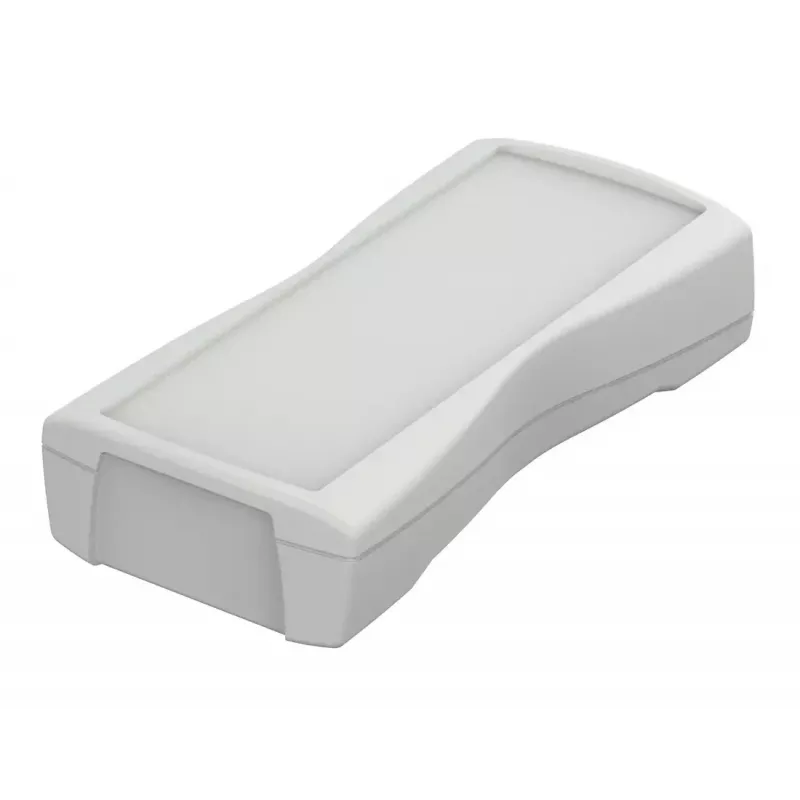

Bopla BS 600 caixa manual, 159,4 x 77,9 x 33,5 mm, cinzento-claro ABS, IP40 82600135

Portable electronics need a robust yet ergonomic housing that protects internal components while remaining comfortable to hold. The Bopla BS 600 handheld enclosure provides a durable ABS shell with a recessed area for a display or keypad, making it suitable for measurement equipment, control units, and other handheld devices. Its light grey RAL 7035 finish offers a neutral, professional appearance.

Who is it for

Engineers and product developers building portable electronic instruments, remote controls, or data collection devices will appreciate the enclosure's ergonomic shape and internal PCB mounting bosses. It is also a good fit for prototyping and small-batch production where a reliable, off-the-shelf housing is needed.

Main features

• External dimensions: 159.4 mm length, 77.9 mm width, 33.5 mm height
• Material: ABS plastic, light grey RAL 7035
• IP40 protection rating
• Screw-on lid with included screws
• Internal mounting bosses for PCBs
• Recessed area for display or keypad
• Flammability rating UL 94 HB
• Operating temperature range: -20 to +80 °C

Specifications

• Product type: Handheld enclosure
• Series: Bopla BS
• Colour: Light grey (RAL 7035)
• Material: ABS
• Length: 159.4 mm
• Width: 77.9 mm
• Height: 33.5 mm
• Protection rating: IP40
• Flammability rating: UL 94 HB
• Operating temperature: -20 to +80 °C
• RoHS compliant: Yes

Tips

When designing your PCB layout, use the internal mounting bosses to secure the board. The recessed area can accommodate a membrane keypad or a small LCD. For outdoor use, consider additional sealing to improve protection beyond IP40.
