Bopla EUROMAS ET 229F Caixa universal 160 x 80 x 37 mm ABS cinzento-claro IP65 63229200

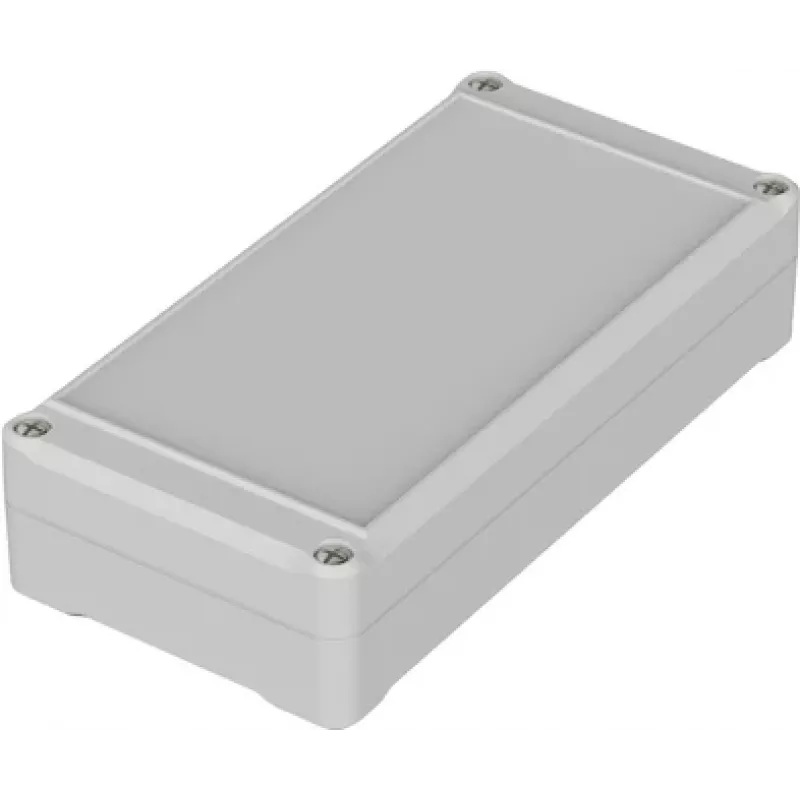

Universal enclosure made of ABS in light grey (RAL 7035) with dimensions 160 x 80 x 37 mm. The EUROMAS ET series offers a robust IP65-rated housing suitable for a wide range of electronic and electrical applications.

Advantages

The enclosure features a recessed lid designed for membrane keypads, integrated mounting bosses for PCBs and components, and wall mounting via screw channels outside the sealing area. The lid is secured with four stainless steel screws and a polyurethane gasket ensures a reliable seal.

Suitable for

• Industrial control units
• Sensor housings
• Interface and connection boxes
• Custom electronic devices

Key specifications

• Material: ABS (UL 94 V-0)
• Colour: Light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature: -40°C to +80°C
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PU)
• Mounting: Wall mounting via screw channels outside sealing area

Recommendations

Ideal for applications requiring a durable, sealed enclosure with easy access and flexible mounting options.
