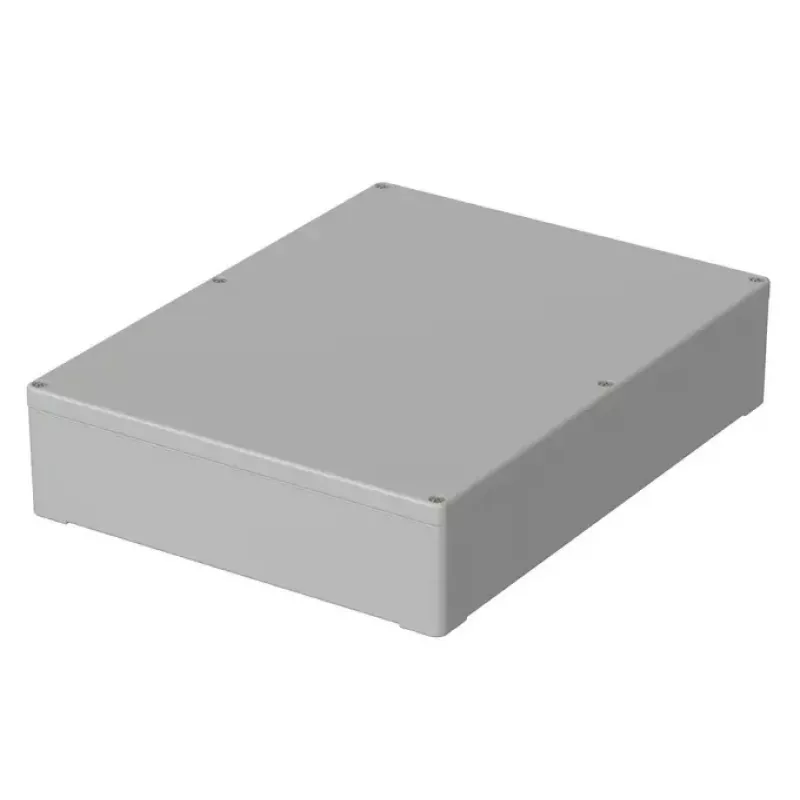

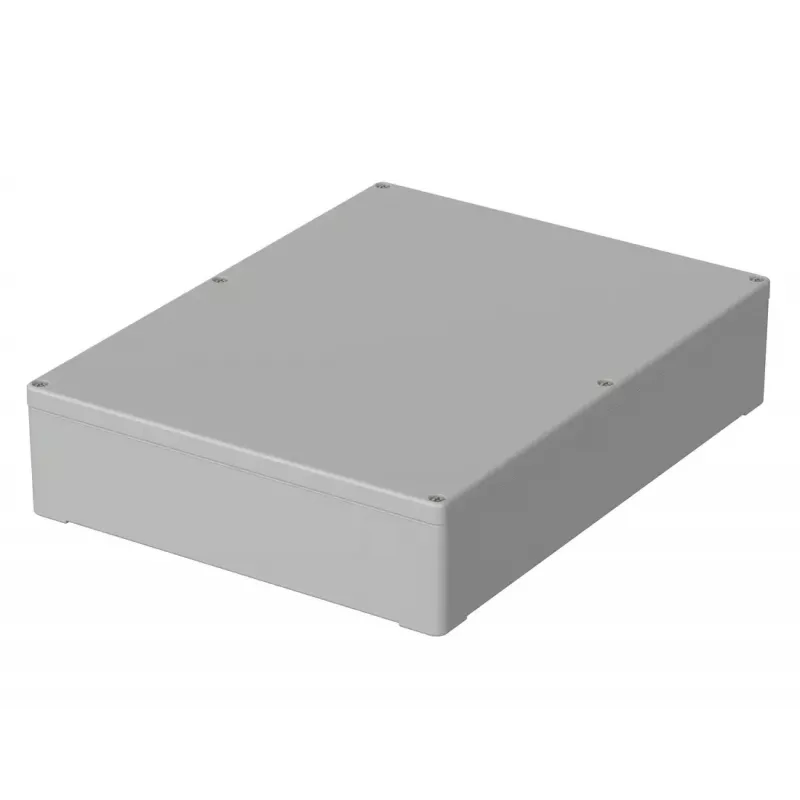

Bopla EUROMAS M 252 caixa universal 300 x 230 x 65 mm policarbonato cinzento-claro 02252000

Electrical installers and panel builders use the Bopla EUROMAS M 252 universal enclosure to house control electronics, terminal blocks, and DIN rail components in industrial and outdoor settings. The enclosure measures 300 x 230 x 65 mm and is made from light grey polycarbonate (RAL 7035), offering a robust and UV-resistant housing for indoor or outdoor applications.

Key specifications

• External dimensions: 300 mm (L) x 230 mm (W) x 65 mm (H)
• Material: Polycarbonate (PC), light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature range: -40 °C to +80 °C
• Flammability rating: UL 94 V-2
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PUR)
• Mounting options: Internal mounting bosses for plates/DIN rails
• UV resistance: Yes
• Chemical resistance: Good against oils, greases, alcohols, weak acids/bases
• Halogen-free: Yes

Why choose it

The EUROMAS M 252 combines a high protection class with a durable polycarbonate body, making it suitable for demanding environments where dust, moisture, and mechanical impact are concerns. Its light grey finish and clean design suit both industrial and commercial installations.

Ideal use cases

• Industrial control panels and automation systems
• Outdoor electrical installations requiring UV resistance
• Junction boxes for harsh environments
• Housing for DIN rail mounted components

Good to know

The enclosure is supplied without accessories; mounting bosses allow for easy installation of plates or DIN rails. The stainless steel lid screws ensure a secure closure and corrosion resistance.
