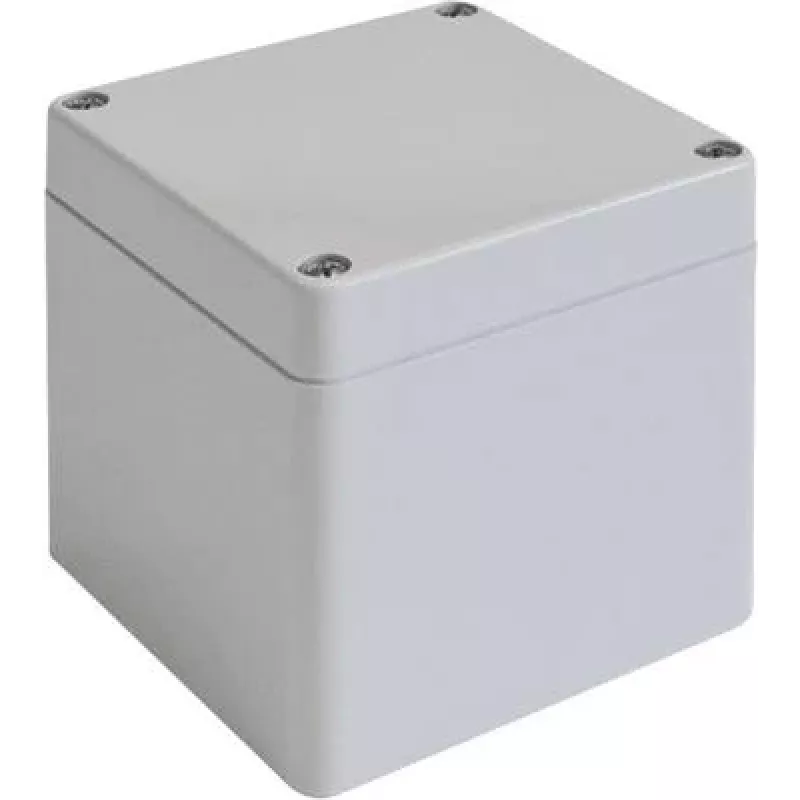

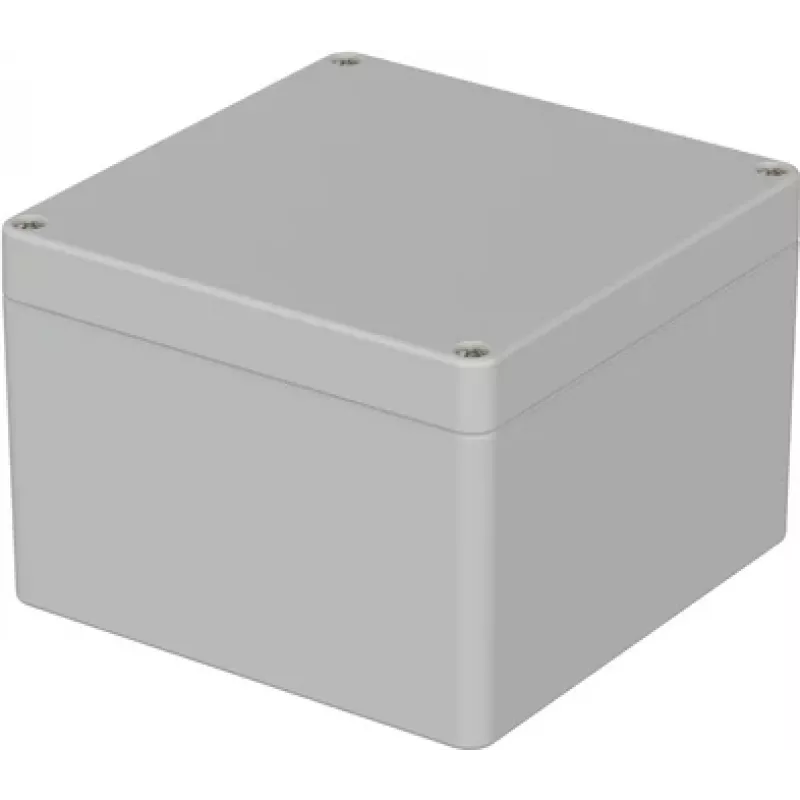

Bopla EUROMAS T 227 caixa universal 122 x 120 x 85 mm, cinzento-claro ABS, IP65 03227000

Electronic components need reliable protection from dust, moisture, and mechanical impact. The Bopla EUROMAS T 227 universal enclosure provides a robust housing solution with a light grey ABS body and a solid lid, offering IP65 protection for a wide range of applications.

Who is it for

This enclosure is suitable for engineers, technicians, and hobbyists who need to house PCBs, sensors, or control electronics in industrial, outdoor, or demanding environments. Its compact size and wall-mounting capability make it ideal for junction boxes, control units, and instrumentation.

Main features

• External dimensions: 122 mm length, 120 mm width, 85 mm height
• Material: ABS (Acrylonitrile Butadiene Styrene), light grey (RAL 7035)
• Protection class IP65: dust-tight and protected against water jets
• Solid lid with stainless steel M4 screws
• Polyurethane (PUR) gasket for reliable sealing
• Wall mountable via internal screw channels
• Internal mounting bosses for PCBs or mounting plates
• Impact resistance IK07
• Operating temperature range: -40 °C to +80 °C
• Flammability rating UL 94 V-0

Specifications

• Enclosure type: Universal enclosure
• Material: ABS
• Colour: Light grey
• External length: 122 mm
• External width: 120 mm
• External height: 85 mm
• Protection class: IP65
• Operating temperature: -40 °C to +80 °C
• Flammability rating: UL 94 V-0
• Lid fastener material: Stainless steel
• Gasket material: Polyurethane (PUR)
• Mounting: Wall mountable
• Internal mounting options: Mounting bosses for PCBs/mounting plates
• Impact resistance: IK07
• RoHS compliance: Yes
• Lid type: Solid lid
• Chemical resistance: Good against aqueous acids, alkalis, salt solutions, alcohols, oils

Tips

For outdoor installations, ensure that cable glands or connectors used with this enclosure also meet the required IP rating to maintain the overall protection. The ABS material offers good chemical resistance, but avoid prolonged exposure to strong solvents.
