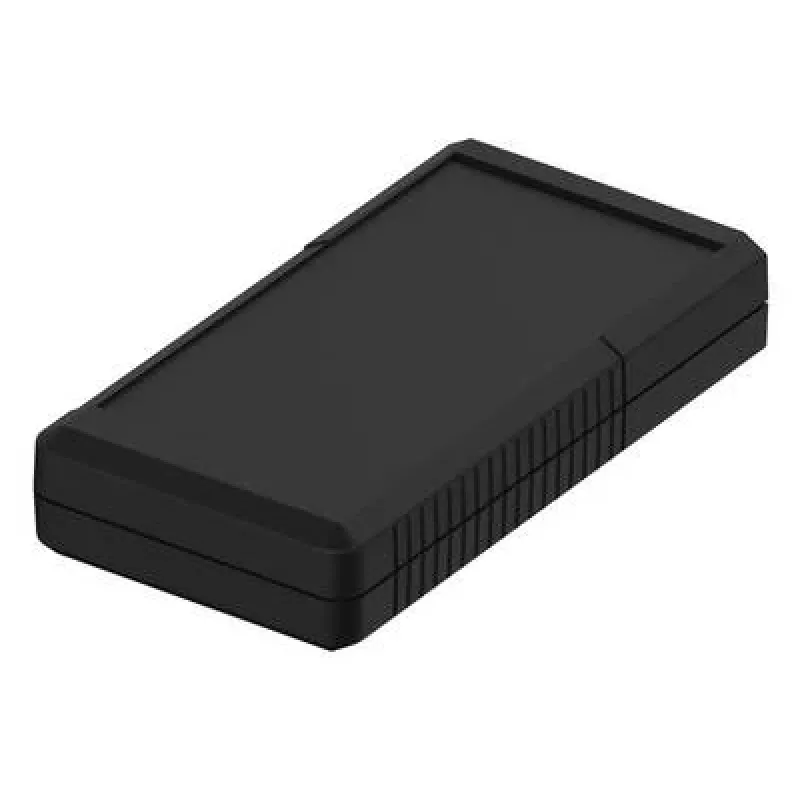

Bopla série AUS caixa manual 157 x 84 x 30 mm, ABS, preto, IP40 34752000

When you need a robust, ergonomic housing for your handheld electronics, the Bopla AUS series provides a ready-made solution. This enclosure offers a comfortable grip and a recessed top surface for membrane keypads or displays, eliminating the need for custom tooling.

Who is it for

Engineers and product developers looking for a cost-effective, off-the-shelf enclosure for prototypes or small production runs of handheld devices, remote controls, or measurement instruments.

Main features

• Made from ABS (Acrylonitrile Butadiene Styrene) in black (RAL 9005) for durability and a professional appearance.
• External dimensions: 157 mm length, 84 mm width, 30 mm height.
• Two-part construction (top and bottom) with screw fastening for easy assembly.
• Recessed area on top for integrating membrane keypads or displays.
• Internal screw pillars for mounting PCBs.
• Protection class IP40, suitable for indoor use.
• Flammability rating UL 94 HB.
• Operating temperature range: -20 °C to +80 °C.

Specifications

• Enclosure type: Handheld enclosure
• Material: ABS
• Colour: Black (RAL 9005)
• External dimensions (L x W x H): 157 x 84 x 30 mm
• Protection class: IP40
• Flammability rating: UL 94 HB
• Operating temperature: -20 °C to +80 °C
• Mounting type: Screw-on
• Number of parts: 2 (top, bottom)
• Internal mounting: Screw pillars for PCBs
• Recessed area: Yes, for membrane keypads or displays
• Battery compartment: No (internal space for batteries, no dedicated external compartment)
• Series: AUS
• Lid fastening: Screws

Tips

Pair this enclosure with a custom membrane keypad or display to create a professional handheld device. The recessed area provides a clean integration point, and the internal pillars simplify PCB mounting.
