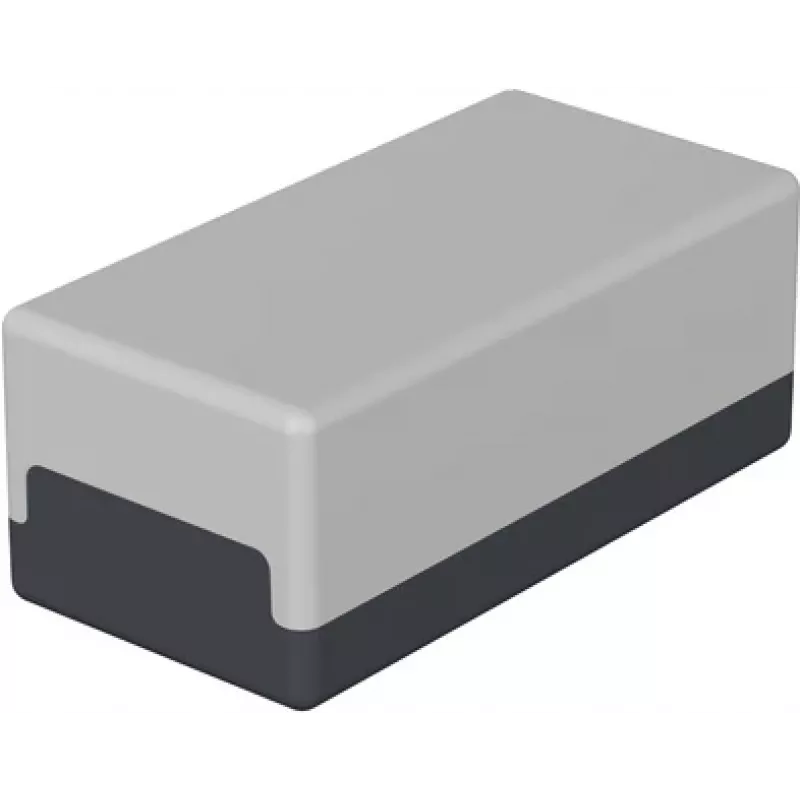

Caixa universal BOPLA, ABS, cinzento-claro, 50 x 25 x 100 mm, IP40 05410000

With a compact footprint of 50 x 25 x 100 mm and a light grey (RAL 7035) ABS body, this universal enclosure from BOPLA provides a clean, professional housing for small electronic assemblies. Its smooth surface and four self-tapping lid screws allow quick access during prototyping and servicing.

Overview

The enclosure consists of a base and lid, both moulded from ABS (UL 94 HB). Internal mounting points accept PCBs or mounting plates, simplifying component layout. The operating temperature range spans -40 °C to +80 °C, making it suitable for a wide range of indoor environments.

What stands out

• Light grey ABS construction with smooth finish
• External dimensions: 50 mm width, 25 mm height, 100 mm length
• IP40 protection against solid objects over 1 mm
• Four self-tapping screws secure the lid
• Internal mounting points for PCBs or plates
• RoHS compliant and halogen-free

Technical details

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• External dimensions: 50 x 25 x 100 mm (W x H x L)
• Protection class: IP40
• Flammability rating: UL 94 HB
• Operating temperature: -40 °C to +80 °C
• Lid fastening: 4 self-tapping screws
• Number of components: 2 (base, lid)
• Internal mounting points: yes
• Surface finish: smooth
• RoHS compliance: yes
• Halogen-free: yes
• Chemical resistance: good against aqueous acids, alkalis, salts, and oils

Our verdict

A practical, no-frills enclosure for electronics projects that need a tidy, durable housing. The ABS body and IP40 rating offer adequate protection for indoor use, while the internal mounting points make assembly straightforward.
