Caixa universal Bopla EUROMAS ET 210F 82 x 80 x 57 mm ABS cinzento claro IP65 63210200

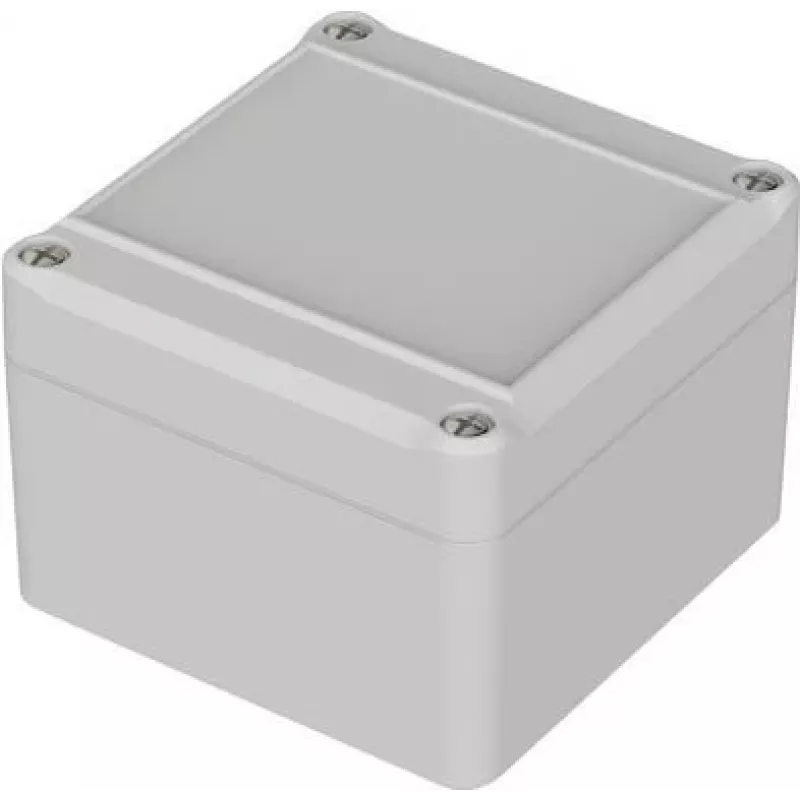

When electronic components need protection from dust, moisture, and mechanical impact, a robust enclosure is essential. The Bopla EUROMAS ET 210F provides a secure housing for your electronics, measuring 82 x 80 x 57 mm externally and made from light grey ABS (RAL 7035).

Who is it for

This enclosure suits engineers, technicians, and hobbyists who require a reliable, IP65-rated box for industrial controls, sensors, or custom electronics. Its compact size and wall-mount capability make it ideal for installations in demanding environments.

Main features

• ABS construction for durability and impact resistance (IK07)
• IP65 protection against dust and water jets
• Light grey colour (RAL 7035) for a clean, professional look
• Solid lid secured with four captive stainless steel screws
• PUR gasket ensures a tight seal
• Four internal mounting bosses for PCBs or plates
• Operating temperature range: -40 °C to +80 °C
• Flammability rating: UL 94 HB
• RoHS compliant and halogen-free

Specifications

• External dimensions (H x W x D): 82 x 80 x 57 mm
• Internal dimensions (H x W x D): 75 x 73 x 49 mm
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• Protection class: IP65 (EN 60529)
• Impact resistance: IK07 (EN 62262)
• Lid fastening: 4x stainless steel screws (captive)
• Gasket material: PUR (Polyurethane)
• Mounting: wall mounting (with accessories), internal bosses
• Number of internal mounting bosses: 4
• Lid type: solid
• Surface finish: smooth

Tips

For wall mounting, use the appropriate Bopla mounting accessories. The enclosure can be easily machined for cable glands or connectors. Ensure the lid screws are tightened evenly to maintain the IP65 seal.
