Caixa universal Bopla EUROMAS M 300 x 230 x 85 mm policarbonato cinzento-claro IP65 02253000

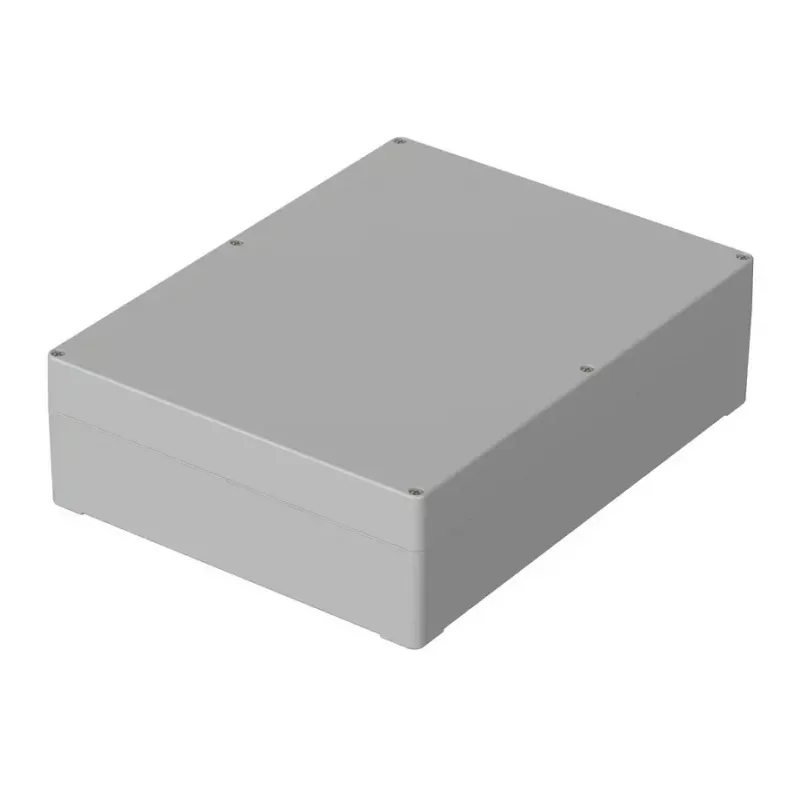

Universal enclosure made of polycarbonate in light grey (RAL 7035), offering robust protection for electrical and electronic components in industrial environments. The enclosure measures 300 x 230 x 85 mm and features an impact resistance of IK08 and a flammability rating of UL 94 V-2.

Advantages

The polycarbonate housing is lightweight yet durable, with an operating temperature range from -40 °C to +100 °C. The lid is secured with four captive stainless steel screws, and a polyurethane foam gasket ensures a reliable seal. Internal mounting bosses allow easy installation of PCBs or mounting plates.

Suitable for

• Industrial control systems
• Electrical junction boxes
• Electronic device housings
• Wall-mounted installations with optional accessories

Key specifications

• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 300 x 230 x 85 mm
• Protection class: IP65
• Impact resistance: IK08
• Flammability rating: UL 94 V-2
• Operating temperature: -40 °C to +100 °C
• Lid fasteners: 4x stainless steel captive screws
• Gasket material: Polyurethane (PU) foam
• Mounting: Internal bosses for PCBs/plates
• Lid type: Opaque
• Series: EUROMAS M

Recommendations

Ideal for applications requiring a robust, IP65-rated enclosure with easy access and internal mounting options. The polycarbonate material provides good chemical resistance and impact strength.
