Caixa universal BOPLA policarbonato cinzento-claro 122 x 120 x 85 mm M 227 02227000

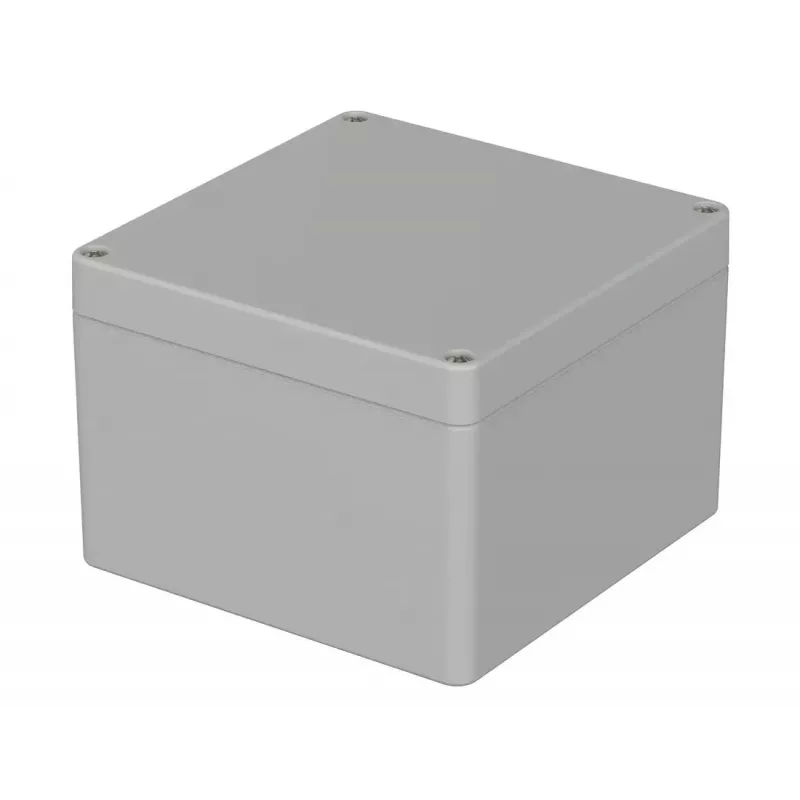

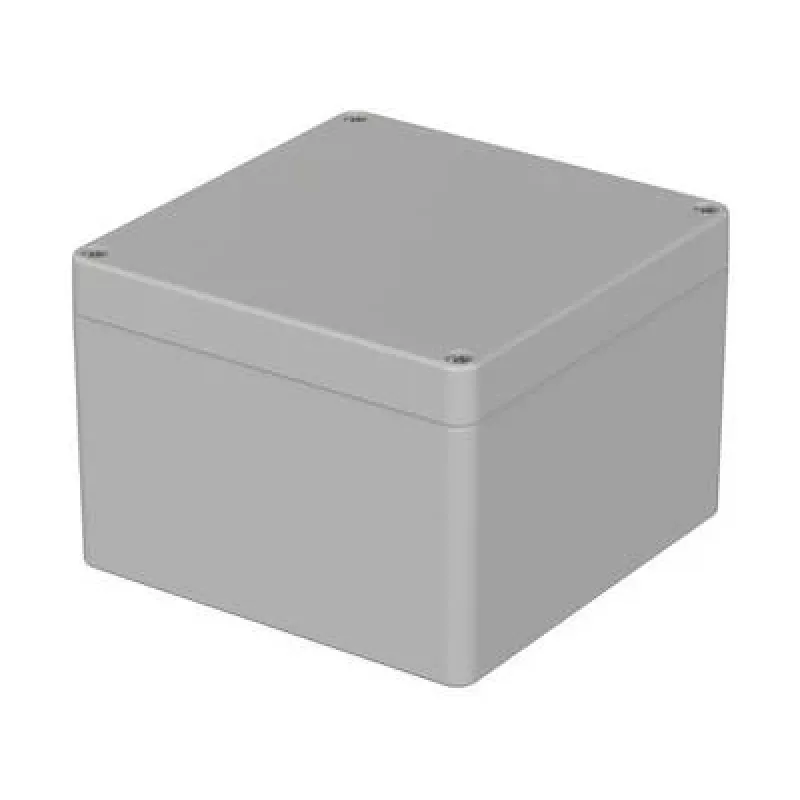

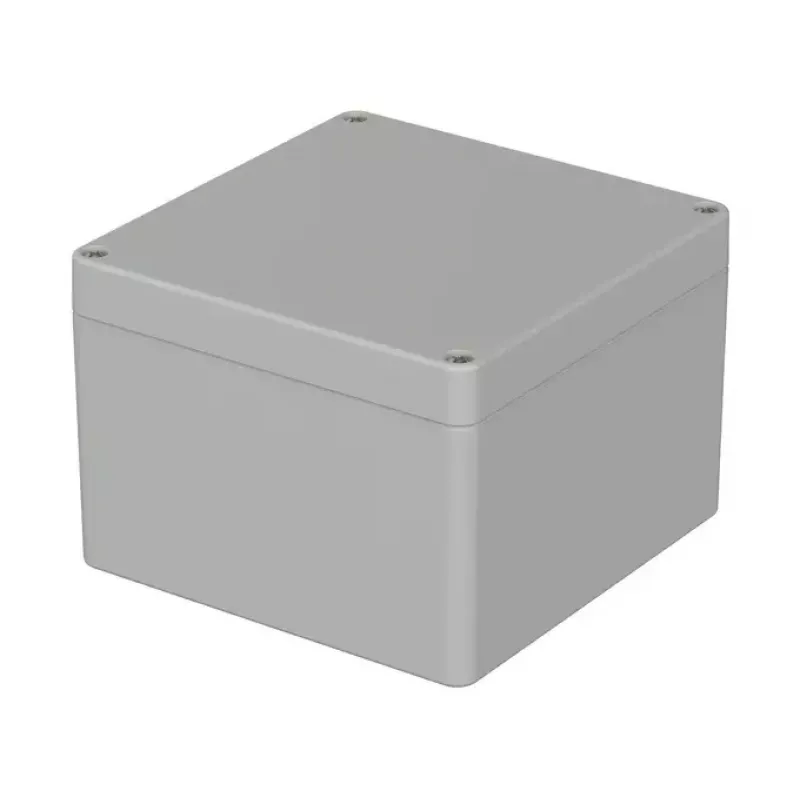

Designed for electronics engineers and installers, this BOPLA universal enclosure provides a robust housing for control units, sensors, and interface electronics in industrial and outdoor settings. With external dimensions of 122 x 120 x 85 mm, it accommodates a wide range of PCBs and components. The light grey polycarbonate body offers excellent impact resistance and a clean, professional appearance.

Key specifications

• Material: Polycarbonate (PC)
• Colour: Light Grey
• External dimensions: 122 x 120 x 85 mm
• Protection class: IP65
• Flammability rating: UL 94 V-2
• Operating temperature: -40 °C to +80 °C
• Lid fastening: 4 stainless steel screws
• Gasket material: Polyurethane (PUR)
• Mounting: Wall mounting with external brackets
• Impact resistance: IK07
• Halogen free

Why choose it

The polycarbonate construction ensures durability and resistance to impact and harsh environments. The IP65 rating protects against dust and water jets, making it suitable for demanding applications. The included PUR gasket provides a reliable seal, while the stainless steel screws resist corrosion.

Ideal use cases

• Industrial control panels
• Outdoor sensor housings
• Junction boxes
• Custom electronics enclosures

Good to know

The enclosure is halogen-free and meets UL 94 V-2 flammability standards, enhancing safety in electrical installations. Its light grey colour blends well in most environments and can be easily painted or labeled if required.
