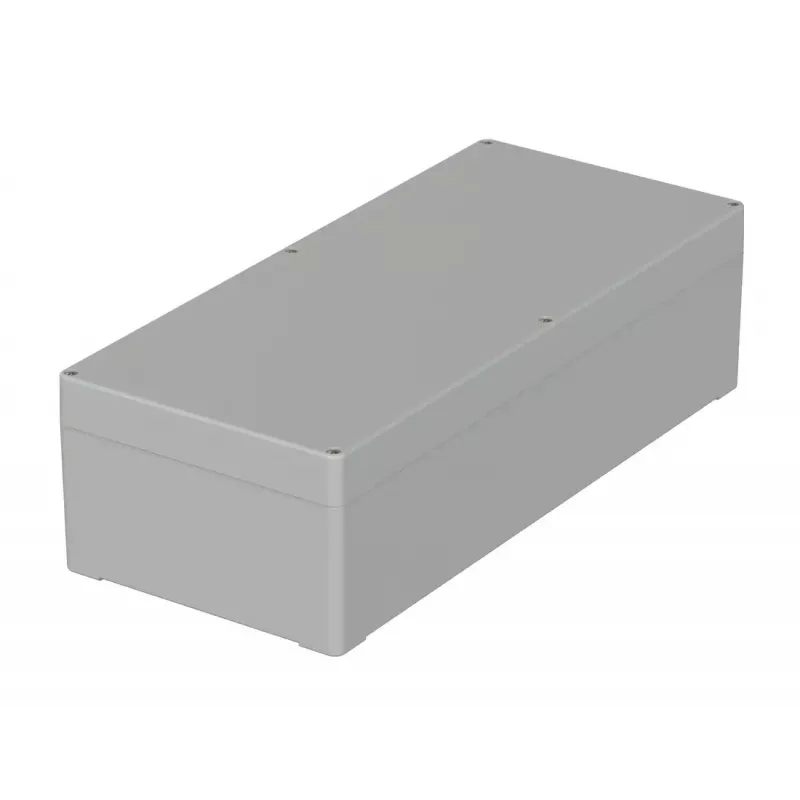

Caixa universal BOPLA policarbonato cinzento-claro 360 x 160 x 100 mm M 251 IP65 02251000

With an IP65 rating and IK08 impact protection, this BOPLA universal enclosure is built to shield sensitive electronics in demanding environments. The light grey polycarbonate body measures 360 x 160 x 100 mm and offers ample space for DIN rails, PCBs, and terminal blocks.

Overview

The BOPLA M 251 enclosure is a robust solution for housing electrical and electronic components. Its polycarbonate construction provides excellent chemical resistance and a wide operating temperature range from -40 °C to +100 °C. The opaque lid is secured with four captive stainless steel screws, ensuring a tight seal against dust and moisture.

What stands out

• IP65 protection against dust and water jets
• IK08 impact resistance for mechanical durability
• UL 94 V-2 flammability rating
• Polyurethane gasket for reliable sealing
• Integrated mounting bosses for PCBs and DIN rails
• Wall-mounting capability via rear holes or accessories

Technical details

• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Dimensions (W x H x D): 360 x 160 x 100 mm
• Lid fastening: 4x stainless steel screws (captive)
• Gasket material: Polyurethane (PUR)
• Operating temperature: -40 °C to +100 °C
• Halogen-free: Yes

Our verdict

A versatile and rugged enclosure for industrial electronics, offering reliable protection and easy installation.
